Particletech Analyzer
This is
ParticleTech Analyzer
- Higher product quality
- Maximum yield
- Less energy consumption
- Reduce batch loss
ParticleTech’s innovative solution for real-time process optimization combines the ParticleTech Sample Unit with advanced 3D scanning technology inside the ParticleTech Analyzer. The system is installed directly at the tank, reactor, or vacuum pan.
The operator inserts a sample cup into the ParticleTech Sample Unit, presses ‘start’, and can step away until the next sample is needed.
Once the measurement begins, the software automatically controls stirring, pump activity, flow rate, and flow cell cleaning. Scanning completes in 10–15 seconds; image analysis takes 1–2 minutes.
With real-time data from the ParticleTech Analyzer, control systems can make fast, automated decisions that keep production optimized at all times
Flexible
Sample Compatibility
- Dry Powder
PT CombiCell provide a reliable sampling method for analyzing particles in dry powders and liquid suspensions. The PT CombiCell chambers are designed to ensure an even particle distribution, resulting in consistent and repeatable measurements
- Liquid Sample
Flow cells provide a reliable sampling method for analyzing particles in liquid suspensions. The flow cell chamber is designed to ensure an even particle distribution, resulting in consistent and repeatable measurements
- Titer Plates
Titer plates allow for easy analysis of both liquid and dry particle samples. The system is compatible with standard titer plates of 6, 12, 24, 48, and 96 wells. They are particularly suitable for the simultaneous analysis of many samples subsequently, all analyzed in the ParticleTech software with just one click
What our ParticleTech Analyzer
Delivers
- Real-time analysis during production
- Compatible across multiple production processes
- Fast, statistically significant results
- Advanced imaging and segmentation technology
- Portable and lightweight system
- Reduce production time by up to 80%
Why use a
Flow System?
1. No Sample Preparation
Just put the sample cup in the unit and press start
2. Particles Stay Evenly Distributed
Suspended particles lie undisturbed in a homogenous distribution within the flow cell
The ParticleTech Analyzers
Software

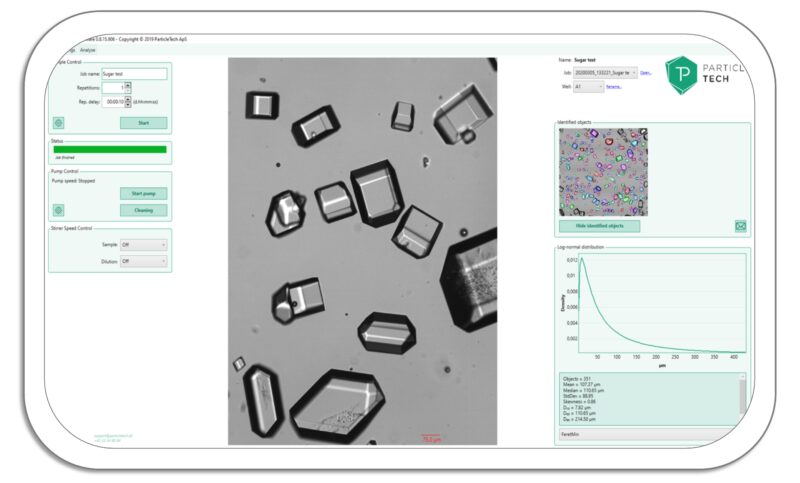

ParticleTech Software is designed with production teams in mind. The interface is intuitive, with pre-set templates that let operators simply press “Start” – No Training, No setup, No hassle.
The system includes a built-in reporting tool to track results over time—making it easy to monitor trends, batches, or full production runs.
The ParticleTech Analyzers
Features
Image Capture & Analysis
Based on a patented and advanced 3D scanning concept. Analyzes particles from 0.5–3,000 µm to determine:
– Particle Size Distribution (PSD)
– Shape and morphology
Standard Measurement Features
Includes comprehensive metrics such as:
– Area, EQPC, Sphericity
– Feretmin, Feretmax, Feretmean, Feretratio
– Percentile sizes: D₁₀, D₅₀, D₉₀
Easy to Use & Learn
Includes a detailed user guide for operation. Supplemented by video tutorials to introduce the software and advanced features.
Industry-Specific Add-Ons
Supports calculations equivalent to ICUMSA® sugar standards for industry-specific workflows
Specific Use-Case Tools
Innovative roughness analysis feature—ideal for analyzing sand grains and other granular materials
